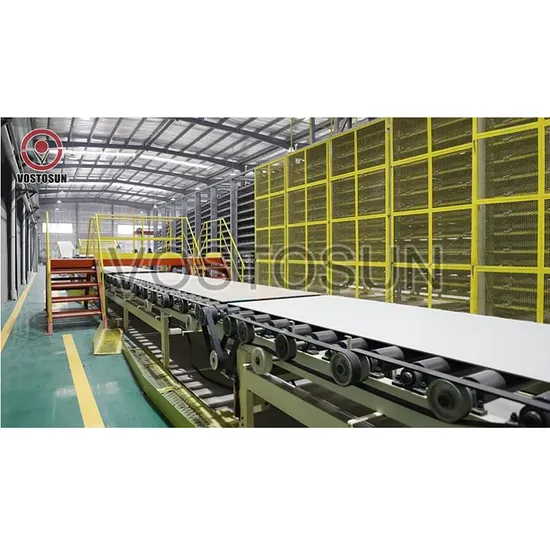

Gypsum Plaster Board Plant Production Line
Gypsum Board Production Plant Introduction: Gypsum board features lightweight, fireproof, heat and noise isolation, whic
Send your inquiryDESCRIPTION
Basic Info.
| Model NO. | Gypsum Board Making Machine |
| Certification | CE, ISO |
| Condition | New |
| Customized | Customized |
| Application | Architectural Engineering |
| Transport Package | Customized |
| Specification | customized |
| Trademark | VOSTOSUN |
| Origin | Shanghai, China |
| HS Code | 8474809090 |
| Production Capacity | 5-10sets/Year |
Product Description
Gypsum Board Production Plant
Introduction:
Gypsum board features lightweight, fireproof, heat and noise isolation, which is widely applied in architectural engineering, suitable for dry construction, performs a good convenience and quality in engineering. VOSTOSUN is dedicated to developing and manufacturing plasterboard plant since 2005, offers qualified products and professional services to customers from all over the world. Services we offer include:
1.Customized complete plasterboard plant, production power from 2 million m2/year to 50 million m2/year. Also offers various devices according to your needs.2.Improve or exchange customer's devices with problem according to customer's requirement;3.Consulting and technical improving service on your existing plants, to improve production quality and save cost;
4.We offer a complete plasterboard plant production management and maintenance service if you lack operation and management personnel, to achieve better economic benefit for you;
5.Plasterboard factory designing and planning service;
6.We can offer you the best formula by analyzing the materials you use to produce plasterboard, to ensure quality of the products.
Our gypsum board production plant consists of multiple units responsible for several processes, controlled by integrated controlling system. Units include:
Features
- Unique impeller feeder and accurate electronic belt weigh ensures the reliability of gypsum powder feeding;
- PLC system featuring centralized control and data sharing, able for monitoring and adjusting every procedure on production line, to ensure normal running.
- Drying system applies horizontal-vertical hot air circulation structure to ensure plasterboards are heated evenly.
- Self-developed new-type mixer, which is able to prevent slurry from caking, an is energy-saving.
Regular Sizes of Gypsum Board Plant Produced Plasterboard:
Length: 1.2m-4mWidth: 1.2-1.4mThickness: 7mm-12mm(Customizable)Drywall plant, Consumption of Raw Material (Take 9.5mm thickness board for example)
| Raw Material Designation | Consumption(kg/) |
| Gypsum powder | 5.7-6.1 |
| Faced Paper 210/ | 0.42 |
| Water | 4.3-4.9 |
| Modified Starch | 0.25-0.30 |
| Foaming Agency | 0.008-0.011 |
| Emulsion (White Latex) | 0.006-0.007 |
| Electricity | 0.3-0.4 kwh |
| Coal | 0.7-1.0 kg (6000 Kcal) |
Packing and ShippingPackaging: Conventional Packaging suitable for long distance transportation.Shipping: 10-30 working days after receiving the deposit of the devices.
